P118i （HD)Ultrasonic Flowmeter For HVAC

Product Details
Brand: pFlow
Model : P118i-RTD-PT1000
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash

Accuracy: ± 0.5% of measured value.                             Display: 3.5 inch TFT color screen( 320 ×240 ), backlit LCD.

Pipe Size: 0.6" ~ 240" (DN15 ~ DN6000)                          Flow Range: ± (0.03 ~ 40) ft/s / ± (0.01 ~ 12) m/s

Power Supply: rechargeable Lithium Battery Power                  Output: Analog output:0/4 ~ 20 mA, ( max load 750 Ω );

PT1000 Temperature sensor (0℃~ +100℃)                        Transducer: IP68, ( 5m cable, standard )

PRODUCT INTRODUCTION

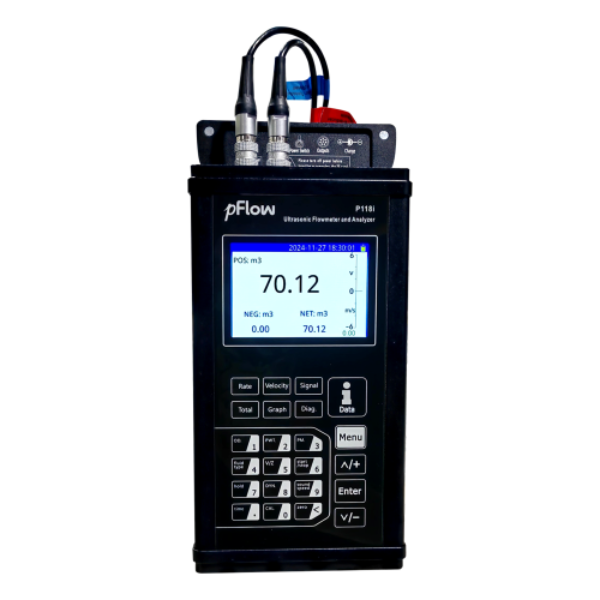

P118i-RTD-PT1000 Ultrasonic Flowmeter


The P118i-RTD-PT1000 Ultrasonic Flowmeter is an advanced device designed for precise thermal energy measurement. The device supports pipe diameters from 25mm to 1200mm and operates in fluid temperatures from 0°C to 80°C. Equipped with a PT1000 temperature sensor, it ensures high accuracy and long-term stability. Automatic calibration and transducer detection streamline setup, while an 8GB SD card and multiple communication protocols facilitate data storage and system integration.



For HVAC

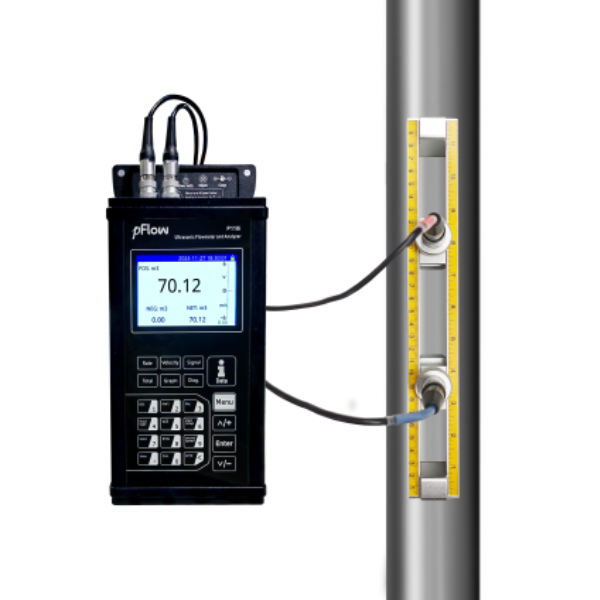

The P118i-RTD-PT1000 Ultrasonic Flowmeter is specifically designed to meet the precise thermal energy measurement needs of HVAC systems. This advanced device utilizes non-intrusive clamp-on technology, allowing for bi-directional flow measurement without interrupting the system. It supports pipe diameters from 25mm to 1200mm and operates effectively in fluid temperatures ranging from 0°C to 80°C, making it highly adaptable to various HVAC applications. The PT1000 temperature sensor ensures high accuracy and long-term stability, crucial for reliable energy management. With a user-friendly interface, 8GB SD card for data storage, and multiple communication protocols, the P118i-RTD-PT1000 offers seamless integration and easy operation. Its automatic calibration and transducer detection features simplify setup, ensuring quick and accurate configuration. Ideal for monitoring and optimizing energy usage in HVAC systems, the P118i-RTD-PT1000 is a valuable tool for enhancing system efficiency and reducing operational costs.

SPECIFICATIONS

Performance Index

Flow range

± (0.03 ~ 40) ft/s

± (0.01 ~ 12) m/s

Accuracy

± 0.5% of measured value.

1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s （0.5 m/s～12 m/s or -0.5 m/s～-12 m/s）

Repeatability

0.15%

Pipe Size

0.6" ~ 240" (DN15 ~ DN6000)

Function Specifications

Output

Analog output: 0/4 ~ 20 mA, ( max load 750 Ω );

Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable );

Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ).

SD card

Storage: 8GB (To prevail in kind);

Max: 512 files;

Interval: 1 ~ 60 seconds.

Power Supply

rechargeable Lithium Battery Power ( continuous operation of main battery

10 hours ).

Keypad

Tactile Keys.

Display

3.5 inch TFT color screen( 320 ×240 ), backlit LCD.

Temperature

Transmitter: 14°F to 122°F (-10℃～50℃)

Transducer: -40°F to 176°F (-40℃～80℃,standard）

Humidity

0 ~ 99% RH, non-condensing.

Physical Characteristics

Transmitter

NEMA13 ( IP54 ).

Transducer

Encapsulated design, IP68;

Standard cable length: 5m

Weight

Transmitter: 1kg.







APPLICATIONS



l HVAC (Heating, Ventilation, and Air Conditioning) systems

l Water and wastewater management

l Process industries (chemical, pharmaceutical, food and beverage)

l Energy management and environmental monitoring

l Agriculture and irrigation systems

l Research and development

l Facilities management

l Industrial maintenance and troubleshooting

l Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

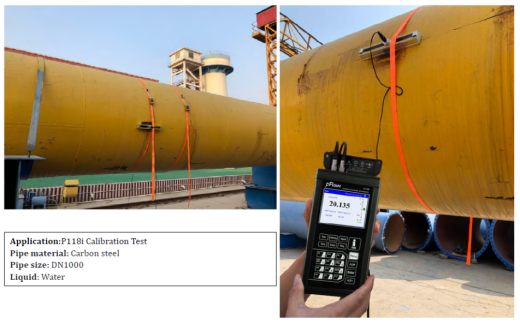

APPLICATION CASE




CERTIFICATE




ABOUT SHIPPING




ABOUT US

1. Gentos Measurement & Control Co, Ltd. was established in 1993.

2. We focus on different types of ultrasonic flow meters almost 30 years.

3. We have our own factory to make exquisite appearance & optimal products.

4. We have 10 to 20 engineering employers to be working on research & development.

5. All our products are designed and manufactured by ourselves.

6. Each department works together to provide best service for our customers as well.



FAQ:

Q1: Do you have stock?

A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders



Q2: How to ensure the quality of your products, will the finished product be inspected?

A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.



Q3: How long is your delivery time?

A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).



Q4: Can you give us a discount?

A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.



Q5: Are you a FACTORY or TRADING COMPANY?

A5: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
