GFCL(black) Ultrasonic Flowmeter For Carbon Audit and Management
GFCL(black) Ultrasonic Flowmeter For Carbon Audit and Management
Brand: pFlow
Model : GFCL
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash
Accuracy:±2.0% of measured value Output: 4~20mA |
Pipe size: DN10~DN50 Flow velocity: 0.03m/s ~5.0m/s |
Pipe Material: Stainless Steel, PVC, Copper, PPR Display: 1.54"LCD colorful screen, Resolution 240*240 |
Keyboard:3 Touch Keys Communication Interface:RS485, Support FUJI and MODBUS Protocol |
PRODUCT INTRODUCTION

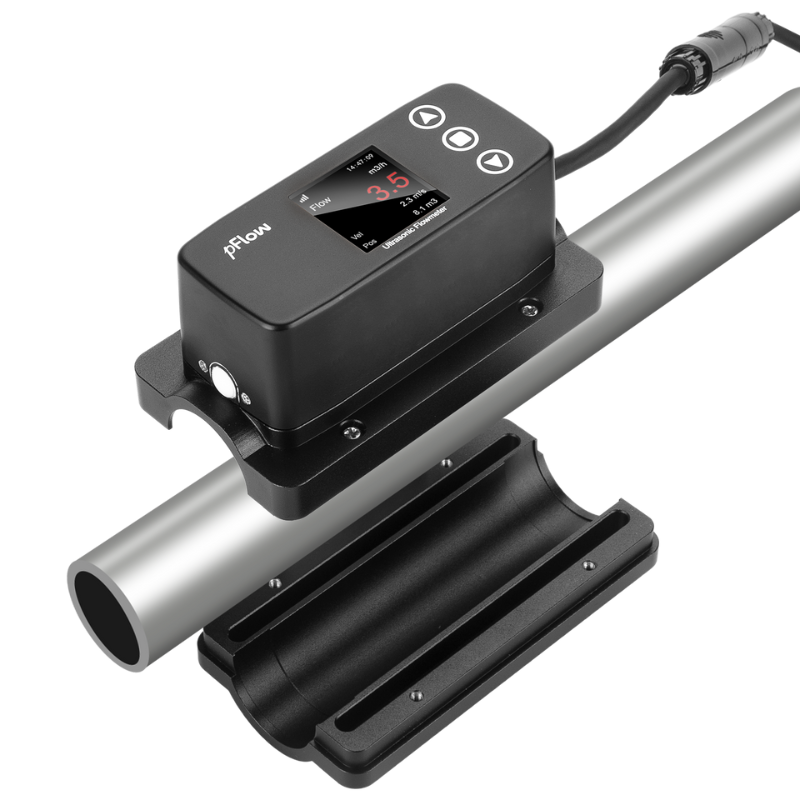

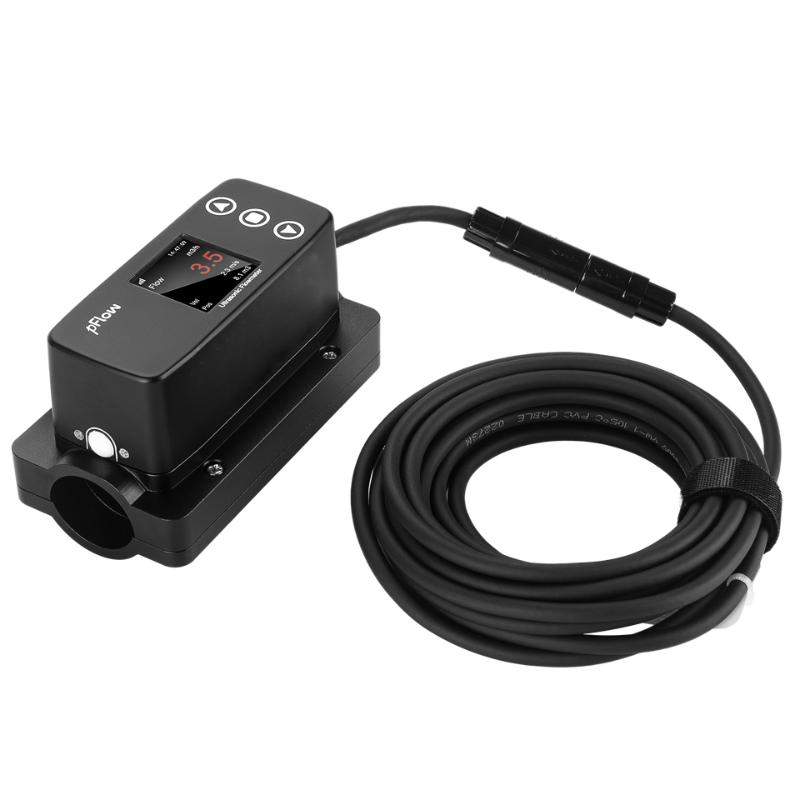

GFCL Ultrasonic Flowmeter
The GFCL ultrasonic flowmeter is a cutting-edge device for precise flow measurement. It utilizes the transit-time method, relying on advanced signal processing and complex algorithms to ensure accuracy. With an integrated external clamping structure, it offers easy installation without breaking pipelines. The device features a 1.54-inch LCD color screen and supports various applications across industries like healthcare and agriculture. It measures flow rates from 0.03m/s to 5.0m/s with ±2% accuracy and is compatible with pipe sizes DN10 to DN50. Equipped with RS485 communication and a 4-20mA output, it is ideal for small pipe diameter needs.
Carbon Audit and Management
l The GFCL ultrasonic flowmeter is an ideal tool for carbon audit and management. It provides accurate and real-time flow rate measurements, which are crucial for monitoring and analyzing water usage in industrial processes.
l By integrating with carbon management systems, the GFCL flowmeter helps identify inefficiencies and quantify the impact of water consumption on carbon emissions.
l Its non-intrusive design and ease of installation make it suitable for retrofitting into existing systems without disrupting operations.
l The GFCL flowmeter supports sustainable practices by enabling precise control and optimization of water resources, contributing to reduced carbon footprints and enhanced environmental compliance.
SPECIFICATIONS
Performance Index | |
Velocity Range | 0.03m/s ~5.0m/s |
Accuracy | ±2.0% of measured value |
Repeatability | 0.4% |

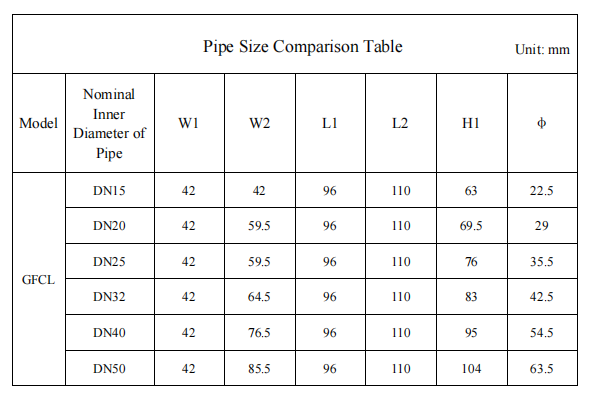

Pipe Size | DN15,DN20,DN25,DN32,DN40,DN50 |
Medium | Water |
Pipe Material | Stainless Steel, PvC, Copper, PPR |
Function Specifications | |
Communication Interface | RS485, Support FUJI and MODBUS Protocol |
Output | 4~20mA |
IP Rating | IP54 |
Power Supply | 10～36VDC/500mA |
Keyboard | 3 Touch Keys |
Enclosure Material | PC(Polycarbonate) |

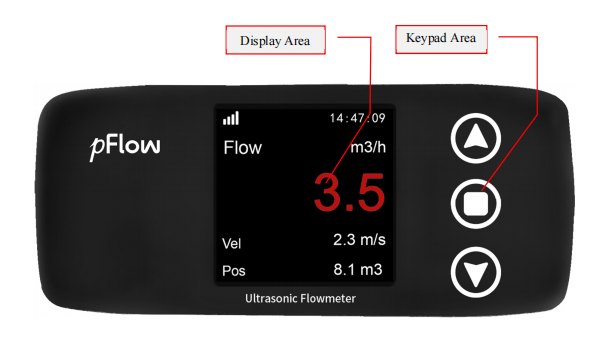

Display | 1.54"LCD colorful screen, Resolution 240*240. |
Temperature | Transmitter:14F to122F(-10℃~50℃) |
Humidity | Relative humidity 0~99%, No condensation |
IP | IP54 |
Physical Characteristics | |
Casing Material | PC engineering plastic |
Clamp Material | Please choose one: aluminum alloy material or PC (Polycarbonate) engineering plastic |
Transmitter | All-in-one |
Transducer | Clamp On |

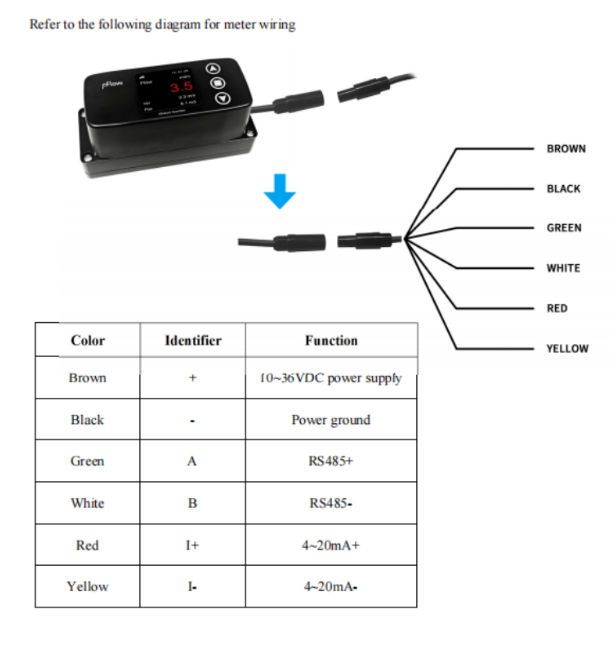

cable | ф5 black six-coreshielded cable with self-locking connectors, standard length: 4m |

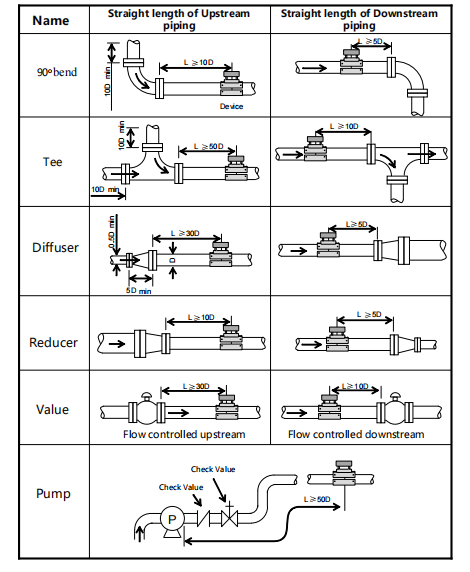

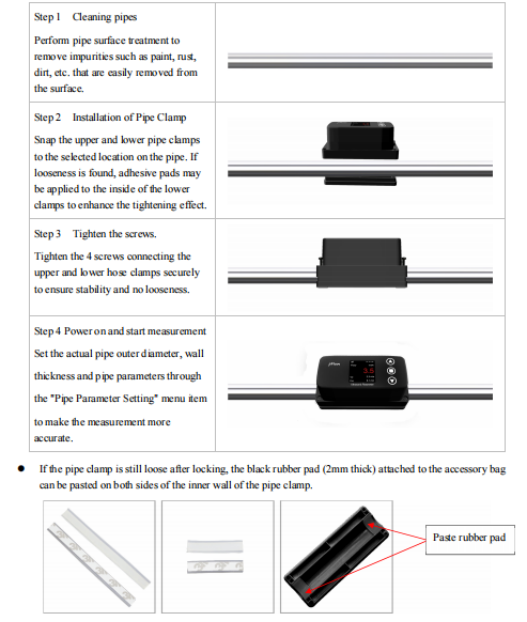

Fast installation steps
APPLICATIONS
l Carbon Audit and Management
l Liquid Cooling Data Center
l Agriculture and irrigation systems
l Water and wastewater management
l HVAC (Heating, Ventilation, and Air Conditioning) systems
l Process industries (chemical, pharmaceutical, food and beverage)
l Energy management and environmental monitoring
l Research and development
l Facilities management
l ndustrial maintenance and troubleshooting

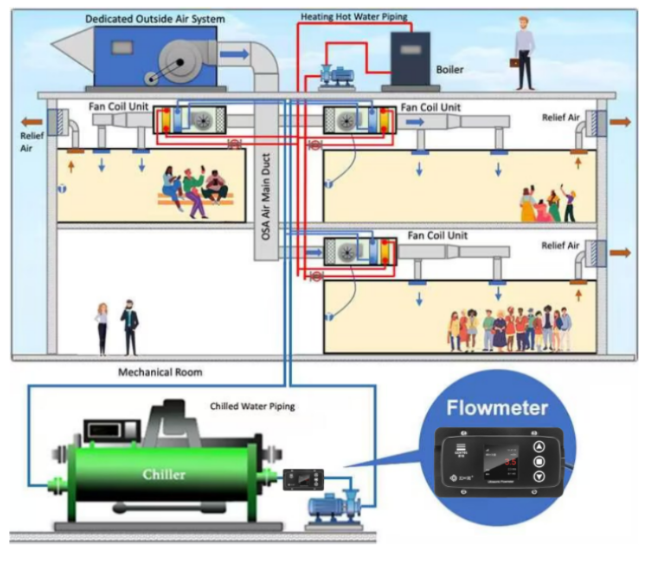

GFCL Application Case
CERTIFICATE
ABOUT SHIPPING
ABOUT US
1. Gentos Measurement & Control Co, Ltd. was established in 1993.
2. We focus on different types of ultrasonic flow meters almost 30 years.
3. We have our own factory to make exquisite appearance & optimal products.
4. We have 10 to 20 engineering employers to be working on research & development.
5. All our products are designed and manufactured by ourselves.
6. Each department works together to provide best service for our customers as well.
FAQ:
Q1: Do you have stock?
A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q2: How to ensure the quality of your products, will the finished product be inspected?
A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q3: How long is your delivery time?
A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q4: Can you give us a discount?
A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q5: Are you a FACTORY or TRADING COMPANY?
A5: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
