P117(HD) Portable Digital Flow Meter for BMS
P117(HD) Portable Digital Flow Meter for BMS
Brand: pFlow
Model : P117（HD）Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash
Accuracy:±1.0% of measured value. (0.5 m/s～5 m/s) Humidity:0~99% RH, non-condensing. |
Pipe size:1"~48′′(25mm~1200mm) Flow range: (±0.03 ~ 16) ft/s (0.01 ~ 5) m/s |
Repeatability: 0.2% Output:Analog output:4 ~20 mA,( max load 500 Ω) |
Keypad:Tactile Keys Display:3.5 inch TFT black and white screen 320×480, backlit LCD |
PRODUCT INTRODUCTION

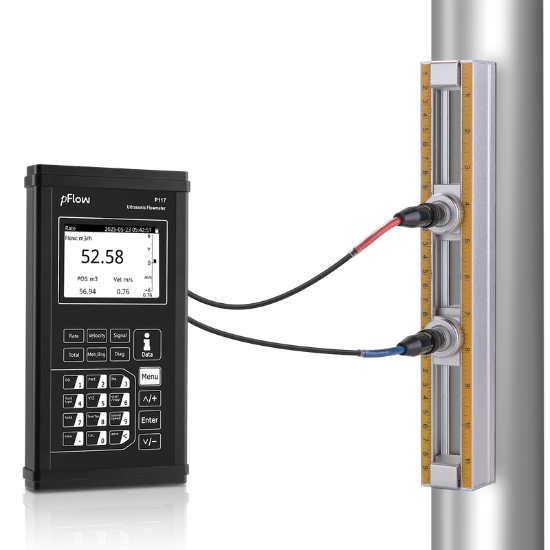

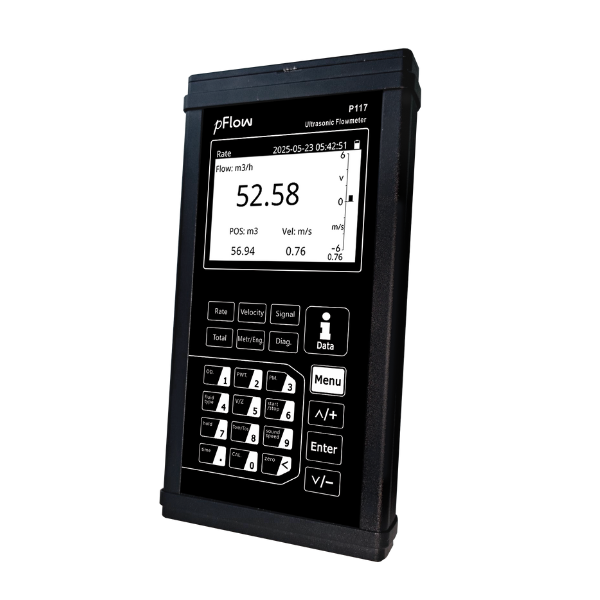

P117 Portable Ultrasonic Flowmeter
The portable digital ultrasonic flowmeter (e.g., P117) acts as a “walk-around audit and temporary tie-in” tool for Building Management Systems (BMS). Maintenance teams clamp it onto chilled or hot-water lines and stream real-time flow, totals and alarm codes to the BMS gateway via RS485/Modbus.
During commissioning it supplies accurate baseline data to tune valve positions, pump speeds and energy models without shutting down the system.
When anomalies occur the same meter is carried to the spot for rapid verification, helping the BMS pinpoint drift or leaks and optimize energy performance.
SPECIFICATIONS
Performance Index | |
Flow range | (0.03~16)f/s |
Accuracy | +1.0% of measured value.(0.5 m/s-5 m/s) |
Repeatability | 0.2% |
Pipe Size | 1"~48′′(25mm~1200mm) |
Functional Index | |

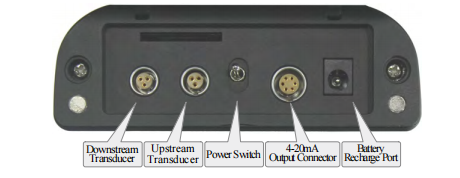

Output | Analog output:4 ~20 mA,( max load 500 Ω2). |
TF card | Storage: 16GB (To prevail in kind); |
Power supply | 10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
Keypad | Tactile Keys. |
Display | 3.5 inch TFT black and white screen 320×480, backlit LCD |
Temperature | Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃,standard ) |
Humidity | 0~ 99% RH, non-condensing. |
Physical Characteristics | |
Transmitter | NEMA13 ( IP54 ). |
Transducer | Encapsulated design, IP68; |

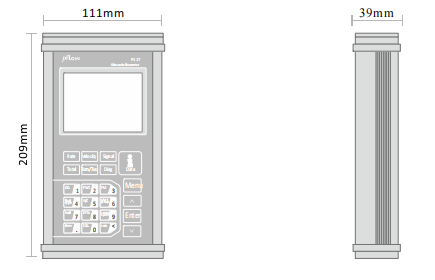

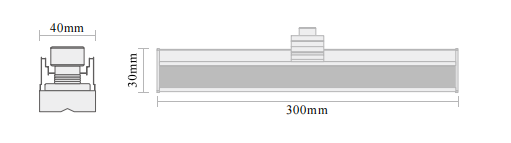

Weight | Transmitter: approximately 0.85kg Transducer: (including transducer rail): 1.25kg |

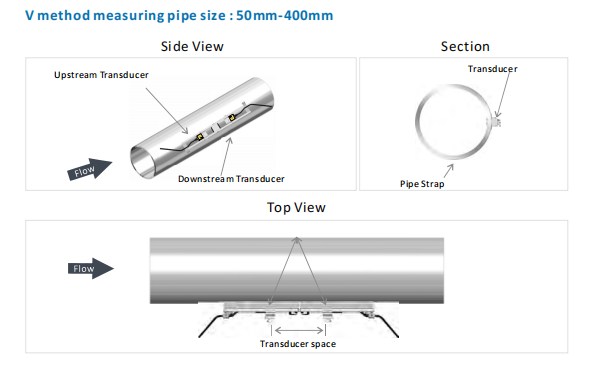

V~Type Installation Method Applicable Pipe Diameter Range: 50mm~400mm (same side, ensure bothsensors are horizontally aligned, with their centerlines parallel to the axis ofthe pipe) (recommended)

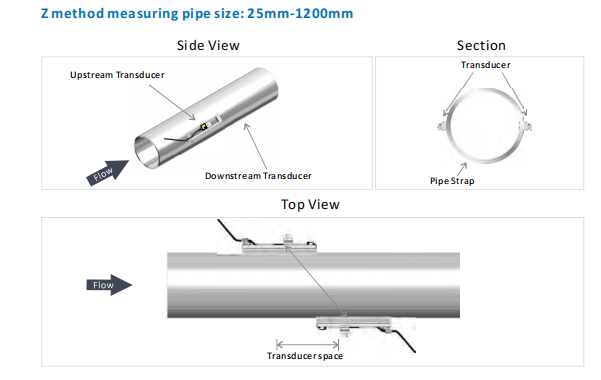

Z-Type Installation Method Applicable Pipe Diameter Range: 25mm~1200mm (opposite sides, avoid installing at the top or bottom of the pipe)
When installing the flowmeter, it is recommended to use the Z-type installation method for pipe sections of 300mm and above.
APPLICATIONS
l Building Management System
l Pharmaceutical Production Water
l Water and wastewater management
l HVAC (Heating, Ventilation, and Air Conditioning) systems
l Process industries (chemical, pharmaceutical, food and beverage)
l Energy management and environmental monitoring
l Agriculture and irrigation systems
l Research and development
l Facilities management
l Industrial maintenance and troubleshooting
l Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

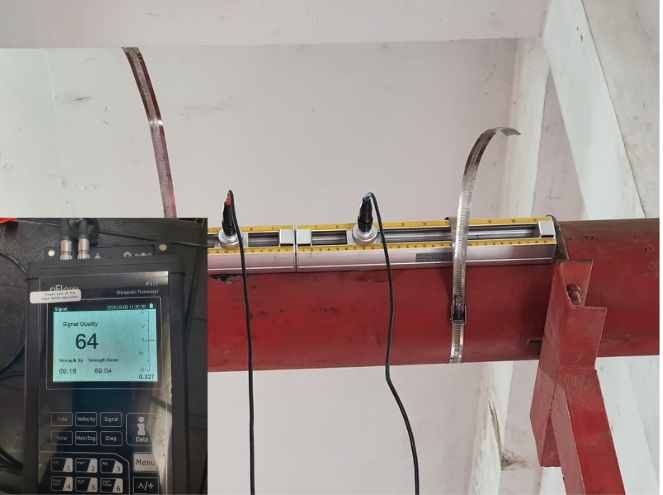

P117 Application Case
CERTIFICATE
ABOUT SHIPPING
ABOUT US
1. Gentos Measurement & Control Co, Ltd. was established in 1993.
2. We focus on different types of ultrasonic flow meters almost 30 years.
3. We have our own factory to make exquisite appearance & optimal products.
4. We have 10 to 20 engineering employers to be working on research & development.
5. All our products are designed and manufactured by ourselves.
6. Each department works together to provide best service for our customers as well.
FAQ:
Q1: Do you have stock?
A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q2: How to ensure the quality of your products, will the finished product be inspected?
A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q3: How long is your delivery time?
A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q4: Can you give us a discount?
A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q5: Are you a FACTORY or TRADING COMPANY?
A5: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
