E3R Ultrasonic energy meter
E3R Ultrasonic energy meter
Brand: pFlow
Model : E3R
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash
Accuracy:±2.0% of measured value Measuring Medium:Cleaning water,Sea water,Cooling water |
Pipe size: DN20~DN80(O.D. 21mm-91mm.) Flow velocity: 0.1 ft/s ~ ±16ft/s(0.03m/s ~5.0m/s) |
Communication interface:RS485;FUJI or MODBUS Protocol Pipe material: Carbon steel, Stainless steel, PVC,Copper |
PRODUCT INTRODUCTION

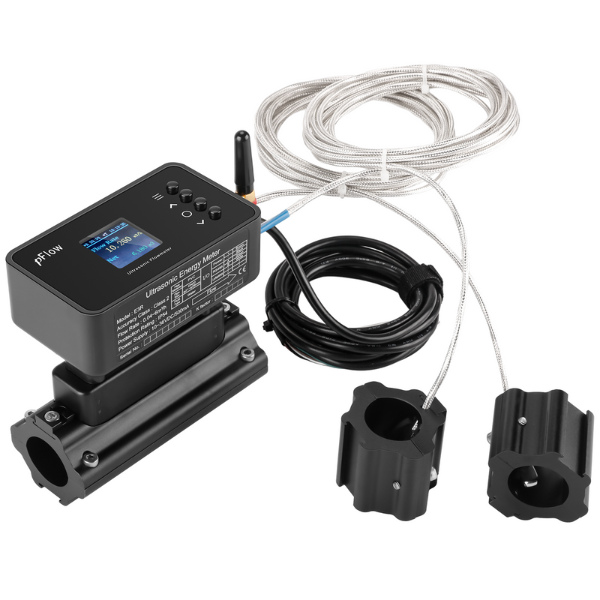

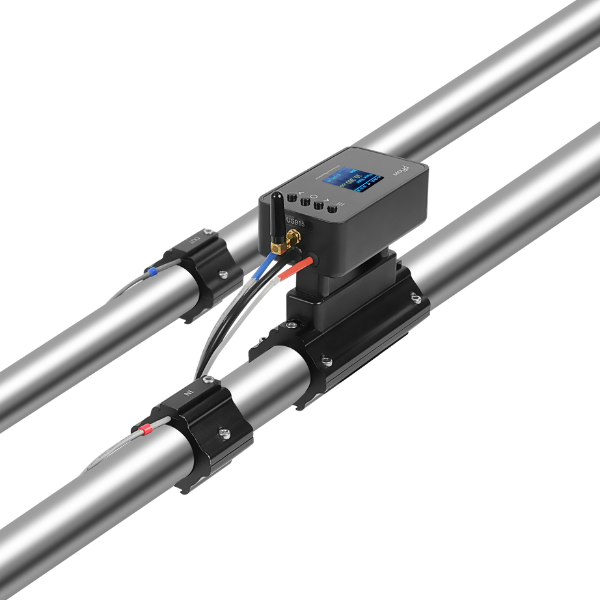

l The E3R clamp-on ultrasonic BTU meter installs in minutes without cutting pipes or stopping flow. Using transit-time technology and Gentos’ patented algorithm, it delivers ±2 %accuracy on DN20–80 steel, copper or PVC pipes (from 0.03 to 5 m/s and 0 to 60 ℃).
l LoRa/LoRaWAN wireless (22 dBm) and RS485 (MODBUS/FUJI) provide flexible remote data access. A (1.44-inch)360°color LCD, 10–36 VDC supply and IP54 housing ensure reliable indoor/outdoor service.
l Dual PT1000 probes log inlet/outlet temperature for precise energy calculation, while nine display pages, zero auto-correction and low-flow cutoff simplify commissioning and billing in HVAC and district energy networks.
SPECIFICATIONS
Performance Index | |
Flow Velocity | ±(0.1~16)ft/s ±(0.03~5) m/s |
Pipe Size | DN20~DN80 |
Accuracy level | ±2% of measured value |
Temperature range | 0~60℃ |
Temperature difference range | 2~50K |
Temperature resolution | 0.01 ℃ |
Medium | Water |
Pipe Material | Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
Function Index | |
Input interface | 2*PT1000 Clamp-on temperature sensor |
Communication interface | RS485(standard); Support FUJI Protocol and MODBUS Protocol |
WIFI | Maximum Transmit Power: 22dBm |
Temperature：-40~85℃ | |
LoRaWAN communication protocol is available | |
Power Supply | 10～36VDC/500mA |
Keypad | 4 touch keys |
Display Screen | 1.44 " LCD colorful screen, resolution 128 * 128 |
LoRa Frequency selection | EU868 Frequency: 863000000~865400000, unit: HZ |
US915 Frequency: 902300000~914900000, unit: HZ | |
CN779 Frequency: 780100000~786500000, unit: HZ | |
EU433 Frequency: 433775000~434665000, unit: HZ | |
AU915 Frequency: 915200000~927800000, unit: HZ | |
CN470 Frequency: 470300000~489300000, unit: HZ | |
AS923(HK) Frequency: 920000000~925000000, unit: HZ | |
Power Supply | 10~36VDC/500mA |
Keyboard | 4 touch keys |
Display screen | 1.44 " LCD colorful screen, resolution 128 * 128 |
Temperature | Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
Humidity | Relative humidity 0~99%, No condensation |
IP | IP54 |
Physical Characteristics | |
Transmitter | All-in-one |
Transducer | Clamp On |
cable | Ø5 six core cable, standard length: 2m(6.6ft) |

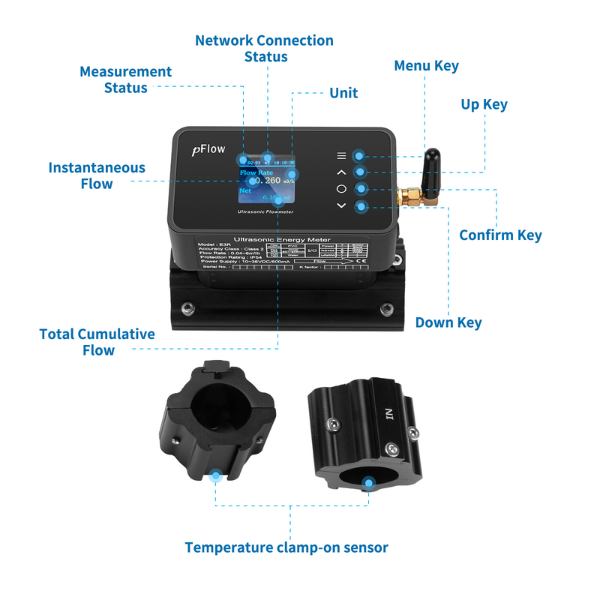

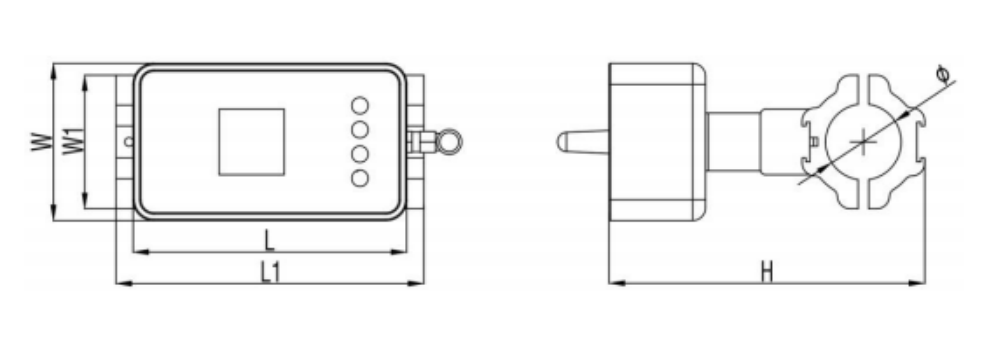

Pipe Diameter Comparison Table Unit:mm | |||||||
Model | Nominal | W | W1 | L | L1 | H | Ø |
E3R | DN20 | 60 | 51 | 105 | 118 | 121 | 29 |
DN25 | 60 | 56 | 105 | 118 | 128 | 36 | |
DN32 | 60 | 63 | 105 | 118 | 135 | 43 | |
DN40 | 60 | 74 | 105 | 118 | 146 | 54 | |
DN50 | 60 | 89 | 105 | 153 | 159 | 67 | |
DN65 | 60 | 102 | 105 | 153 | 172 | 80 | |
DN80 | 60 | 113 | 105 | 153 | 183 | 91 | |

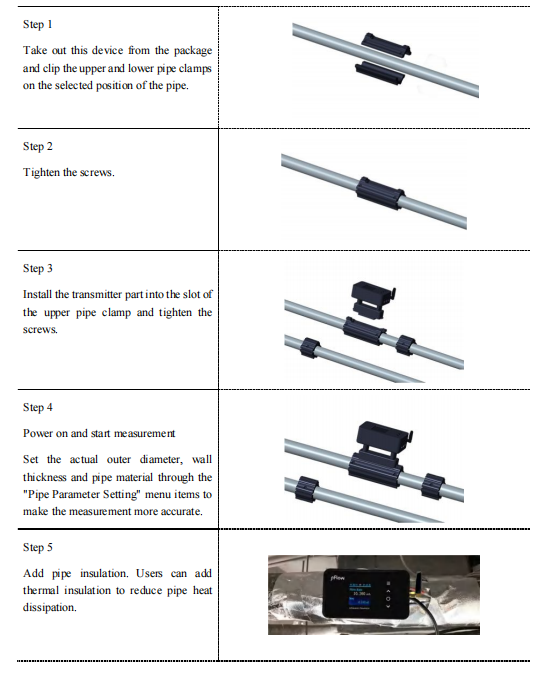

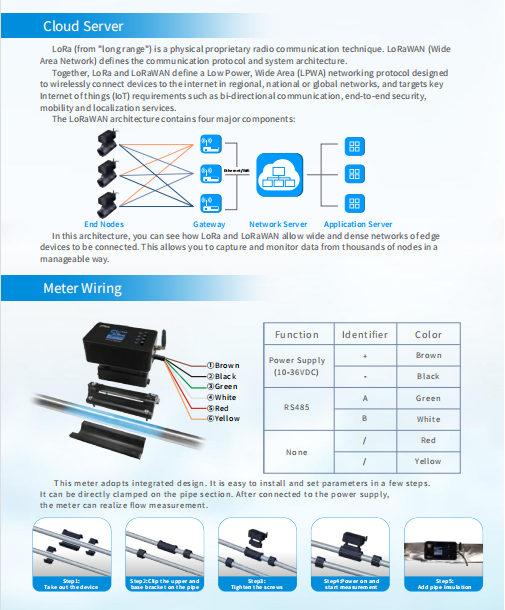

Fast installation steps

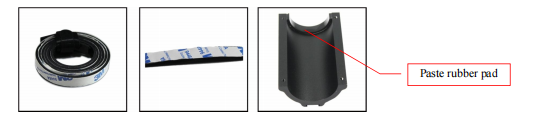

If the pipe clamp is still loose after locking, the black rubber pad (2mm thick) attached to the accessory bag
can be pasted on both sides ofthe inner wall of the pipe clamp.
APPLICATIONS
l Process control
l Carbon Audit and Management
l Liquid Cooling Data Center
l Agriculture and irrigation systems
l Water and wastewater management
l HVAC (Heating, Ventilation, and Air Conditioning) systems
l Process industries (chemical, pharmaceutical, food and beverage)
l Energy management and environmental monitoring
l Research and development
l Facilities management
l ndustrial maintenance and troubleshooting

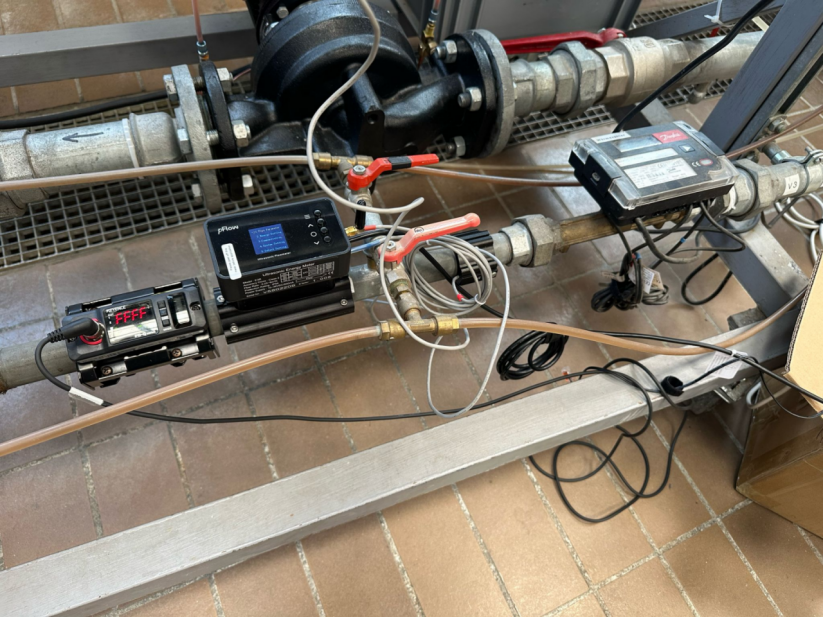

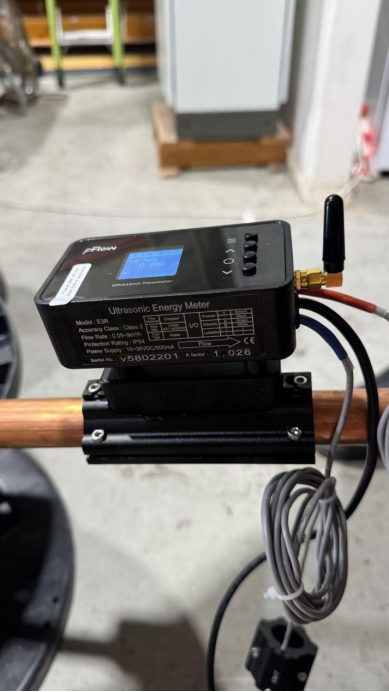

E3R Application Case

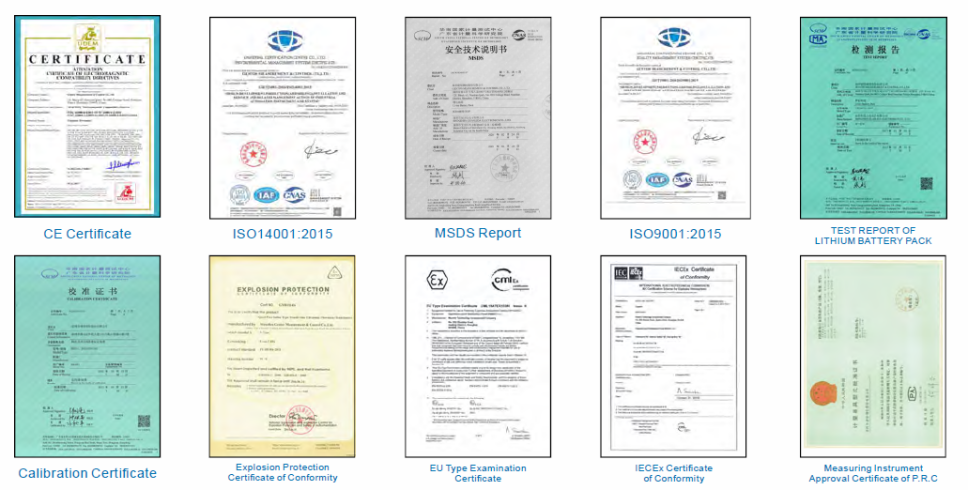

CERTIFICATE
