D3 Data Centre CDU Monitoring
D3 Data Centre CDU Monitoring
Brand: pFlow
Model : D3
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash
Accuracy: ±2.0% of RD Measuring Medium: Water, PG25 |
Pipe size: DN20~DN80 (21mm~91mm) Flow range: 0.03~5.0m/s |
Keypad: 3 touch keys Display: 1.54 " LCD colorful screen, resolution 240 * 240 |
Output: 4~20mA Communication Interface: RS485, MODBUS Protocol |
PRODUCT INTRODUCTION

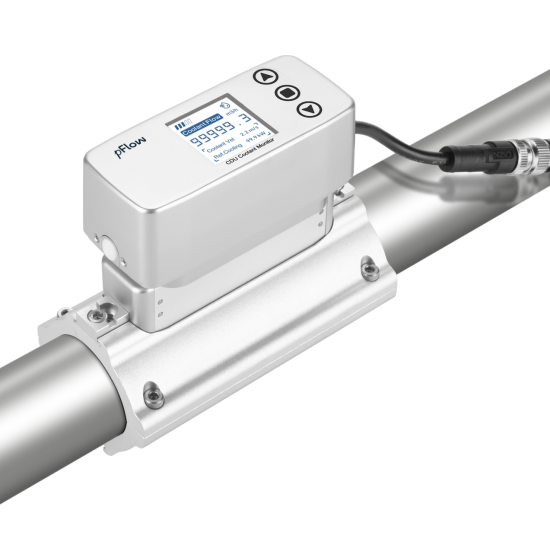

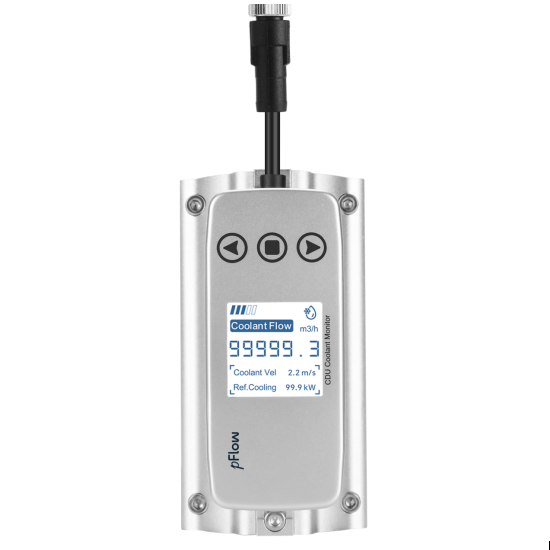

D3 CDU Coolant Monitor
The D3 Series CDU Coolant Monitor is a cutting-edge device specifically engineered for Data Centre CDU Monitoring. Utilizing advanced ultrasonic technology, it provides precise measurements of coolant flow in pipelines without the need to cut or directly contact the liquid. This compact and lightweight monitor is designed for easy installation in confined spaces, supporting multiple pipe diameters and compatible with various coolants. Its non-contact design ensures accurate data while eliminating the risk of liquid leakage, making it an efficient and safe solution for data centre cooling system monitoring.
SPECIFICATIONS
Performance Indicators | |
Flow Velocity Range | 0.3m/s ~5.0m/s |
Accuracy | ±2% of RD |
Repeatability | 0.4% |
Pipe Sizes | DN20, DN25, DN32, DN40, DN50, DN65, DN80 |
Medium | Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
Pipe Material | Stainless steel |
Functional Indicators | |
Communication Interface | RS485; supports MODBUS protocol |
Output | 4~20 mA, max load 500Ω, isolated |
Power Supply | 10～36VDC/500mA |
Keyboard | 3 touch keys |
Display Screen | 1.54" LCD color screen, resolution 240*240 |
Temperature | Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
Humidity | 20~90% relative humidity, no condensation |
IP Rating | IP65 |
Physical Characteristics | |
Housing Material | PC engineering plastic |
Pipe Clamp Material | Aluminum alloy |
Transmitter | Integrated |
Transducer | Clamp-on |
Cable | φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |

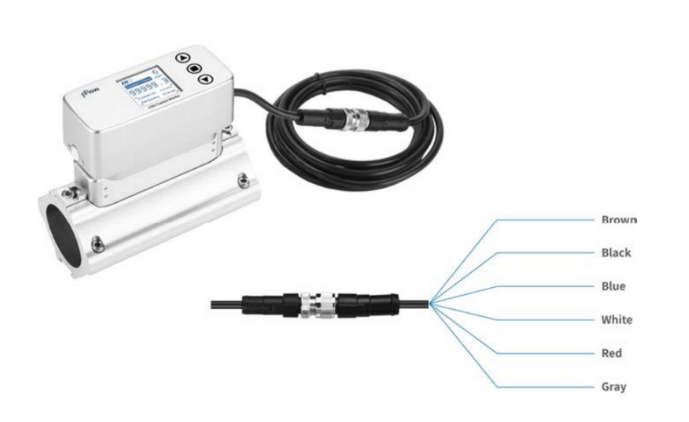

WIRING DIAGRAM
Color | Identifier | Function |
Brown | + | Power Supply (10~36 VDC) |
Black | - | Ground |
Blue | A | RS485+ |
White | B | RS485- |
Red | I+ | 4~20mA+ |
Gray | I- | 4~20mA- |
Fast installation steps of CDU Coolant Monitor
Step 1: Clean the Pipe Carry out pipeline surface treatment and remove impurities such as paint, rust, dirt, etc. |
|

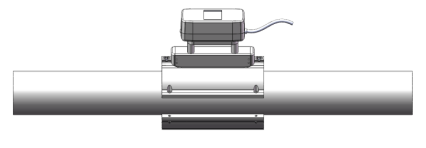

Step 2: Install Pipe Clamp Snap the upper and lower clamps onto the pipe. If loose, attach adhesive pads inside the lower clamp. |
|

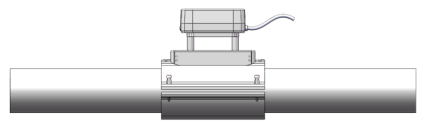

Step 3: Tighten Screws Tighten Screws: Secure the 4 screws diagonally to ensure stability. To effectively ensure the parallelism of the upper and lower pipe clamps, thereby ensuring the stable operation and measurement accuracy of the equipment. | |
Step 4: Power On and Measure Set pipe parameters (outer diameter, wall thickness) via the menu for accurate measurement. |
|
APPLICATIONS

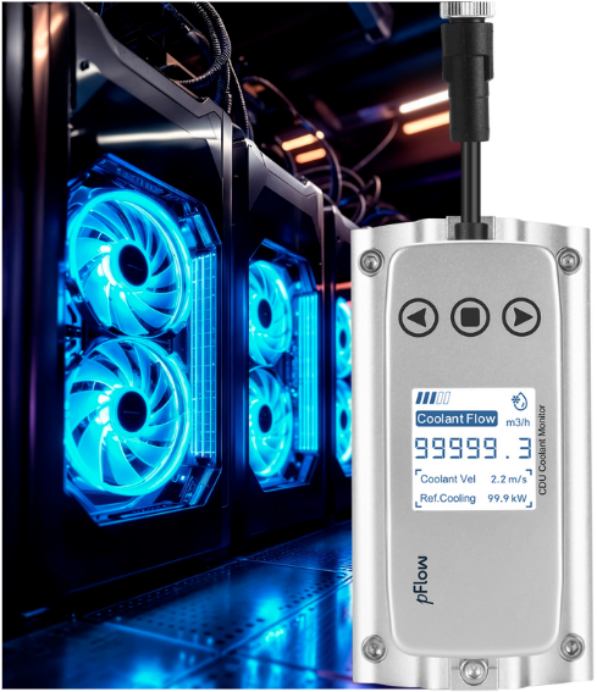

l Data center HVAC Cooling Systems
l Agriculture and irrigation systems
l Water and wastewater management
l HVAC (Heating, Ventilation, and Air Conditioning) systems
l Process industries (chemical, pharmaceutical, food and beverage)
l Energy management and environmental monitoring
l Research and development
l Facilities management
l Industrial maintenance and troubleshooting
Application cases
CERTIFICATE
ABOUT SHIPPING
ABOUT US
1. Gentos Measurement & Control Co, Ltd. was established in 1993.
2. We focus on different types of ultrasonic flow meters almost 30 years.
3. We have our own factory to make exquisite appearance & optimal products.
4. We have 10 to 20 engineering employers to be working on research & development.
5. All our products are designed and manufactured by ourselves.
6. Each department works together to provide best service for our customers as well.
FAQ:
Q1: Do you have stock?
A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q2: How to ensure the quality of your products, will the finished product be inspected?
A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q3: How long is your delivery time?
A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q4: Can you give us a discount?
A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q5: Are you a FACTORY or TRADING COMPANY?
A5: Yes,we are a manufacturer with designing, manufacturing, marketing and exporting.
