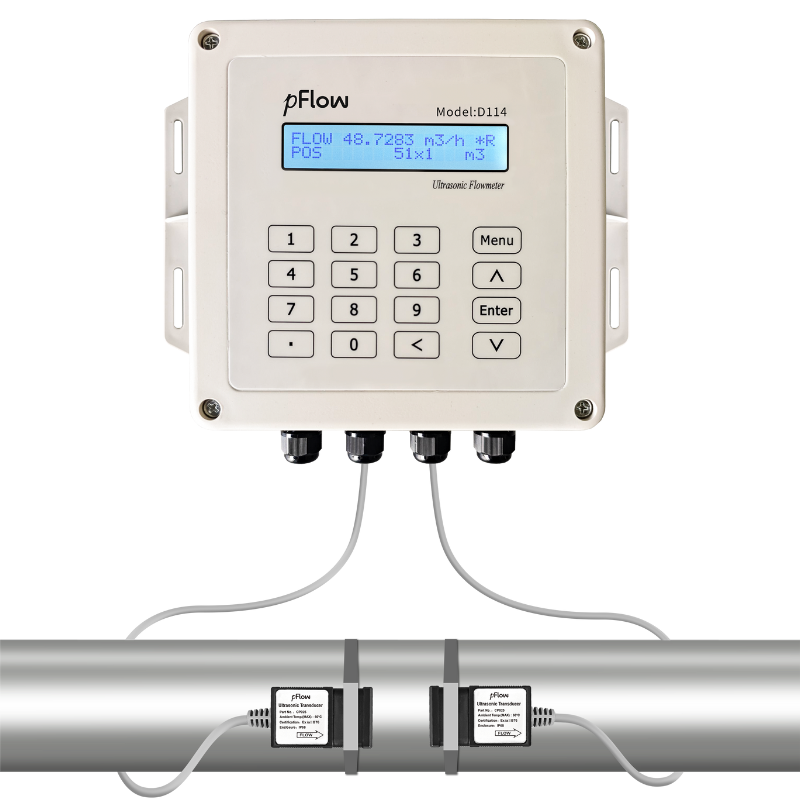

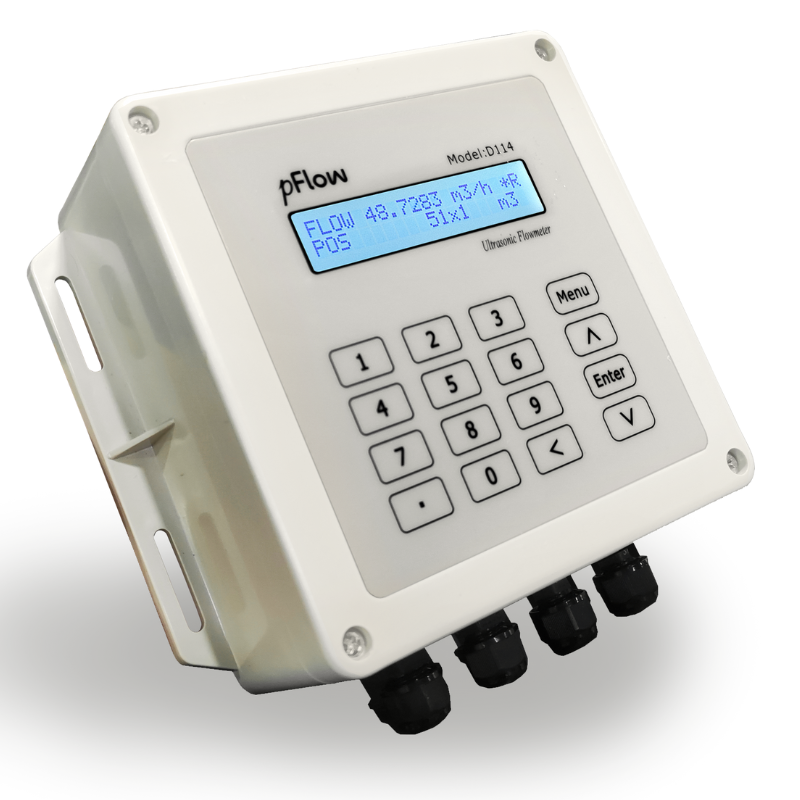

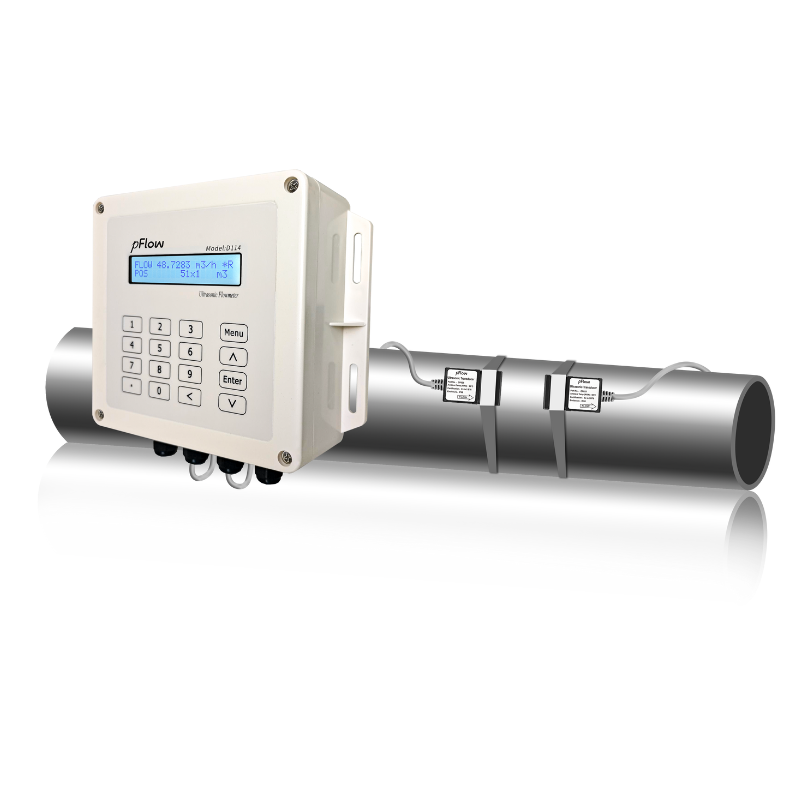

D114 Flow Meter for Water Production
D114 Flow Meter for Water Production
Brand: pFlow
Model : D114
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash
Accuracy: ± 2.0 % of measured value Fluid: Water. |
Pipe Size: 1ʺ ~ 24ʺ ( 25mm ~ 600mm ). Flow Velocity: 0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ). |
Output: RS485, 4-20mA Power supply: 10 ~ 36VDC/1A. |
Pipe Material: Carbon steel, Stainless steel, PVC, Copper. IP Rating: Transmitter: IP65/ Transducer: IP68 |
PRODUCT INTRODUCTION

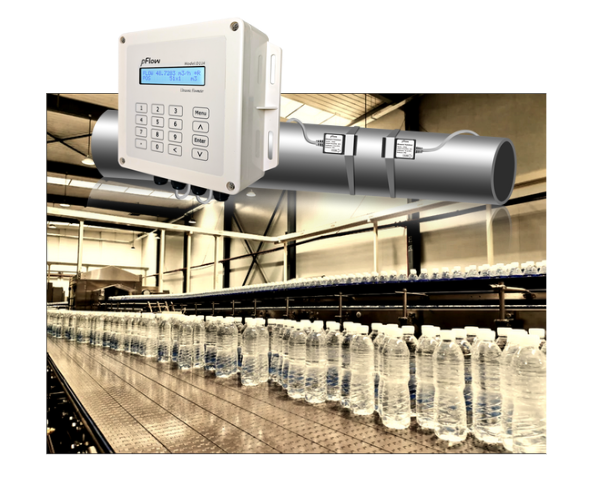

D114 Flow Meter for Beverage Production
The D114 ultrasonic flowmeter is ideal for beverage production, accurately monitoring flow rates of water, CIP solutions, or ingredient liquids without cutting pipes—ensuring hygienic, non-intrusive operation. Its ±2 % precision and 4–20 mA / RS485 outputs integrate seamlessly with PLCs for automated batching and filling.
Built-in 64-day data logging supports traceability and energy analysis; low-power, IP65 electronics withstand damp, vibrating plant conditions
SPECIFICATIONS
Performance specifications | |
Flow range | 0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ). |
Accuracy | ± 2.0 % of measured value |
Pipe Size | 1ʺ ~ 24ʺ ( 25mm ~ 600mm ). |
Fluid | Water. |
Pipe Material | Carbon steel, Stainless steel, PVC, Copper. |
Function specifications | |
Output | Analog output : 4 ~ 20mA, max load 750Ω. |
Communication interface | RS485 MODBUS. |
Power supply | 10 ~ 36VDC/1A. |
Keypad | 16 Touch Keys |
Display | 20×2 lattice alphanumeric, back lit LCD. |
Temperature | Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ); Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ). |
Humidity | Up to 99% RH, non-condensing. |
Physical specifications | |
Transmitter | Engineering Plastic (ABS), IP Rating IP65 |
Transducer | Encapsulated design, IP68. |
Transducer Cable | Standard cable length: 16 ft (5m). |
Weight | Transmitter: approximately 0.6kg; Transducer: approximately 0.5kg. |

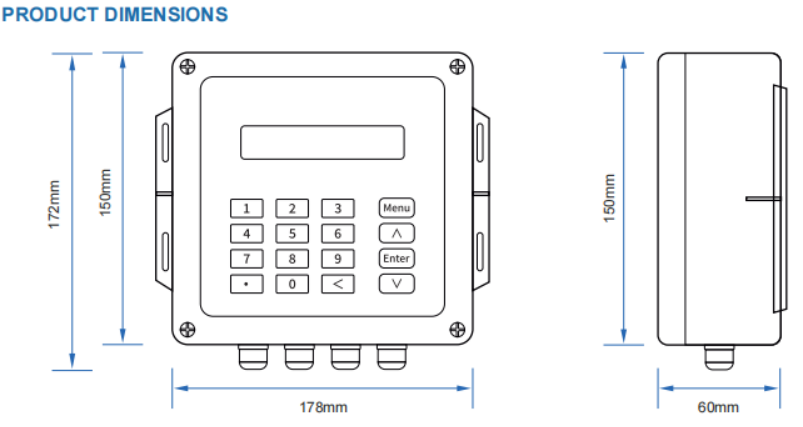

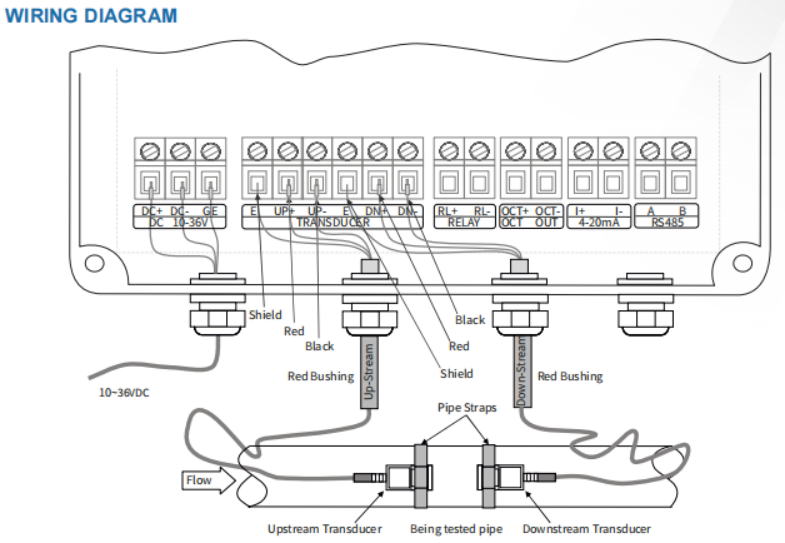

INTERFACE AND SIZE

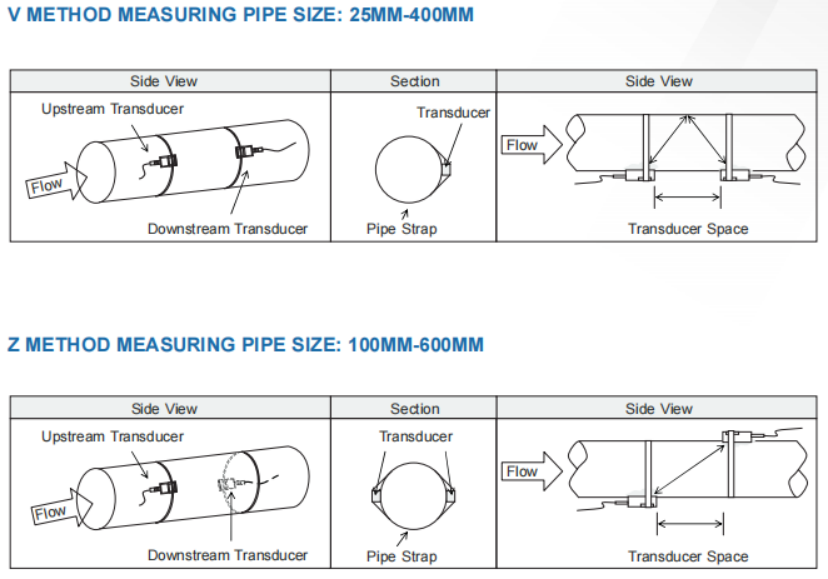

TRANSDUCER INSTALLATION METHODS

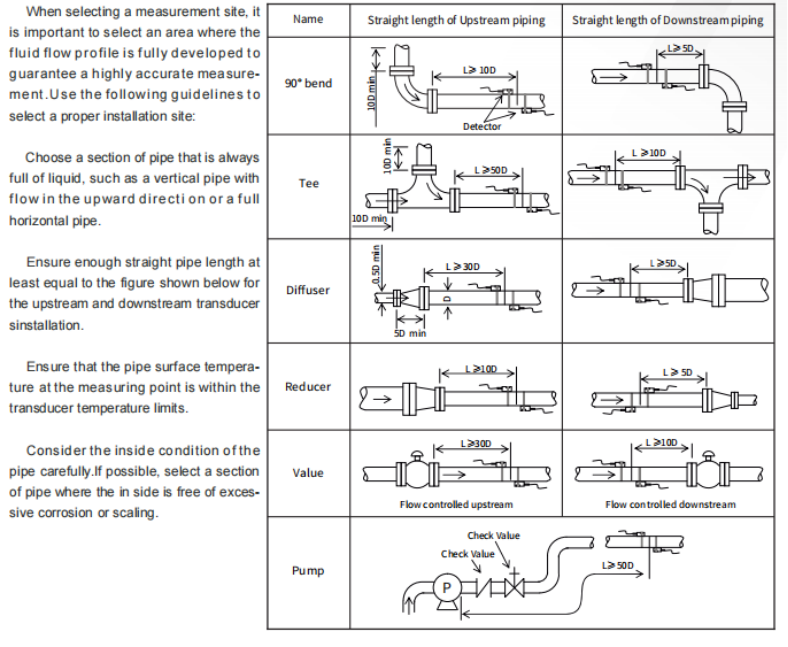

INSTALLATION SITE SELECTION
APPLICATIONS
l Beverage Production
l HVAC (Heating, Ventilation, and Air Conditioning) systemsl
l Water and wastewater management
l Energy management and environmental monitoring
l Agriculture and irrigation systems
l Research and development
l Facilities management
l Industrial maintenance and troubleshooting
l Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
APPLICATION CASE
CERTIFICATE
ABOUT SHIPPING
ABOUT US
1. Gentos Measurement & Control Co, Ltd. was established in 1993.
2. We focus on different types of ultrasonic flow meters almost 30 years.
3. We have our own factory to make exquisite appearance & optimal products.
4. We have 10 to 20 engineering employers to be working on research & development.
5. All our products are designed and manufactured by ourselves.
6. Each department works together to provide best service for our customers as well.
FAQ:
Q1: Do you have stock?
A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q2: How to ensure the quality of your products, will the finished product be inspected?
A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q3: How long is your delivery time?
A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q4: Can you give us a discount?
A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q5: Are you a FACTORY or TRADING COMPANY?
A5: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
