F3E Clip-on POE Ultrasonic Flowmeter

Model : F3E
Brand : pflow
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash

Introduction

Gentos quick measure ultrasonic flowmeter F3E adopts the measurement principle of transit-time method.Combined with Gentos ultrasonic signal processing technology and unique flow algorithm,fluid flow in the pipeline can be accurately measured.The productis an all-in-one and clip-on structure design,which is simple and convenient to install.

According to the product manual, it can be powered on and measured by the four-step operation.The installation process requires no contact with fluid media and no need to shut down.The instrument adopts POE power supply and Ethernet communication to realize cloud data storage.Users can manage,analyze and monitor measurement data information by access cloud data through mobile terminals and PC terminals whenever and wherever.


Advantages

       lEasy to install,without break pipe

       lEasily clip on

       lLCD color display

       lScreen display in 4 directions rotating

       lPOE cable power supply, safe & convenient


Functions

       lFlow Control and Monitoring

       lTotal traffic calculation

       lWater distribution

       lLeak monitoring

       lEthernet communication


Specifications

Performance Index

Flow range

0.1~16ft/s (0.03~5.0m/s)

Accuracy

±2%,(1.0~16ft/s)

Pipe size

DN20~DN80

Fluid

Water

Pipe material

Carbon Steel, Stainless Steel, Copper, PVC

Functional Index

Support Protocol

HTTP、MQTT Protocol

IP

IP54

Power supply

POE network cable power supply

Keypad

4 keys

Display screen

1.44 "LCD color screen, resolution 128 * 128

Temperature

Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ )

Measured medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).

Humidity

0 to 99% RH,non-condensing

Physical Characteristics

Transmitter

Integrated

Transducer

Clamp on

Weight

POE waterproof tail line, standard length: 0.5m


Wiring Diagram&Dimension

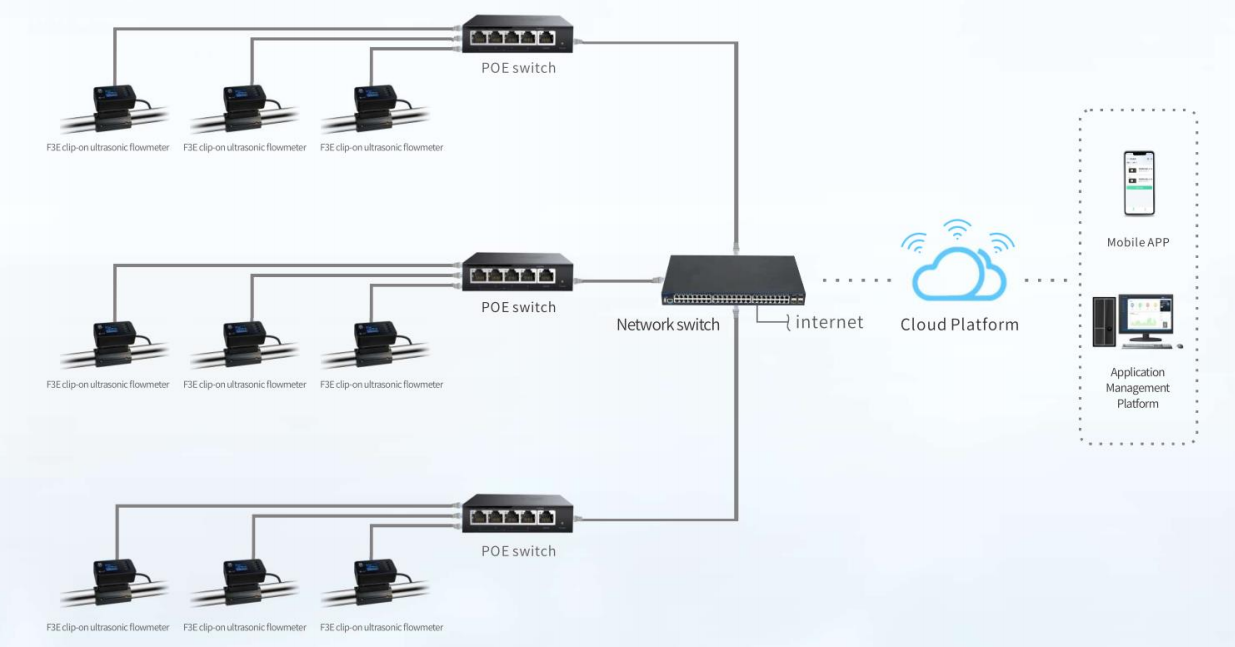

Application Topology



Installation



Certificate



Professional Measure Single Material


Detectable Fluids
