E3CL Clip-on Ultrasonic Thermal Energy

Model : E3CL
Brand : pflow
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash

Introduction

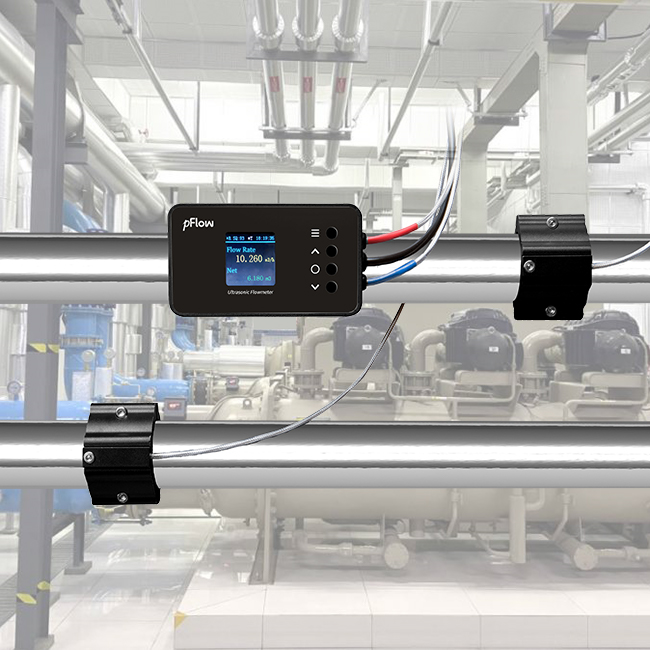

E3CL Clip-on Ultrasonic Thermal Energy (BTU) Flow Meter adopts ultrasonic time difference method measurement principle, combined with Gentos' ultrasonic flow algorithm technology, to achieve accurate measurement of fluid flow and heat (cold) volume in the pipeline.

The product is designed with integrated external clamp structure, easy and convenient to install, after four steps of operation can be powered on to measure, the installation process does not need to contact the fluid medium,no need to stop work and production.


Advantages

lEasy installation, no damaging pipe

lNo adjustment,plug and play

lLCD color display

lScreen display in 4 direction rotation


Specifications

Performance Index

Flow range

0.03~5.0m/s

Accuracy

±2.0% of measured value

Pipe size

Clamp-on: DN20~DN80

Temperature range

4~95℃

Temperature difference

range

3~75K

Temperature resolution

0.01℃

Measuring medium

Water

Pipe Material

Carbon Steel, Stainless Steel, Copper, PVC

(According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.)

Functional Index

Input interface

2*PT1000 Clamp-on temperature sensor

32～212℉（0~100℃）

Communication interface

RS485(standard); Support FUJI Protocol and MODBUS Protocol

Output

4-20mA

Power Supply

10～36VDC/500mA

Keyboard

4 touch keys

Display screen

1.44 " LCD colorful screen, resolution 128 * 128

Temperature

Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ )

Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).

Humidity

0 to 99% RH,non-condensing

IP

IP54

Physical Characteristics

Transmitter

PC/ABS,IP65

Transducer

Clamp on

Cable

Ø 5 six core cable, standard length: 2m

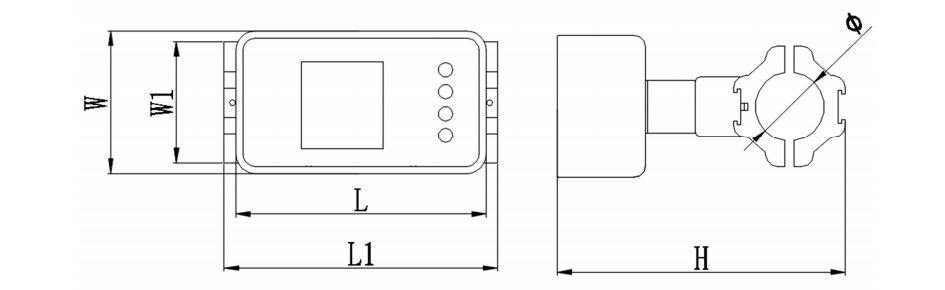

Wiring Diagram&Dimension





Application

HVAC, heating, energy-saving monitoring, heat balance regulation, heating regulation, AHU room, thermal energy transformation, etc.
