Introduction
With the promotion and popularization of strategic concepts such as carbon neutrality, environmental protection, and low carbon, people’s awareness of energy conservation is gradually improving. At the moment of relatively short water resources, how to save water and improve the utilization rate of water resources is urgent to be solved. The VF600 flow control valve introduced by Gentos is an intelligent control type valve, which can control the valve opening regularly and intelligently according to the flow and time settings to improve the utilization rate of water resources. It offers multiple control modes, including constant flow, timer, and batch control, making it highly adaptable to various water management scenarios. Additionally, the VF600 valve can transmit data to the cloud server via Wi-Fi, allowing users to monitor and manage water usage remotely through the MeterTube app. This intelligent valve is widely used in municipal gardening, building water management, agriculture irrigation, and more.
Advantages
lDesign with threaded connection
lEasy and fast installation
lSupport App remote operation
lLCD display
lIP54
Specifications
Performance Index | |
Measurable range of velocity | 0~3m/s |
Range of pipe diameter | Internal diameter12mm |
Measured medium | water |
Product material | UPVC-100%green |
Functional Index | |
Input | Type-C(power supply, charging and communication) |
Output | Type-C(communication) |
WIFI | Range of frequency:2400~2483.5MHz |
Theoretically, the transmission distance can reach 40 meters in open environment | |
Power supply
| External 5V, 2A power adapter for power supply or charging; Built-in 3.7V lithium battery |
Keyboard | 6 keys |
Display screen | 0.96" LCD display, resolution ratio 80*160 |
Temperature | Transmitter installation environment temperature: 5~55℃ Medium temperature measured by transducer: 0℃~60℃ |
Humidity | Relative humidity<93%, no condensation |
Pressure rating | 1.0MPa |
Protection grade | IP54 |
Physical Characteristics | |
Transmitter | All-in-one |
Transducer | Inline flowmeter |
Cable | Type-C cable, standard length:1m |
Weight | 1KG |
Wiring Diagram&Dimension

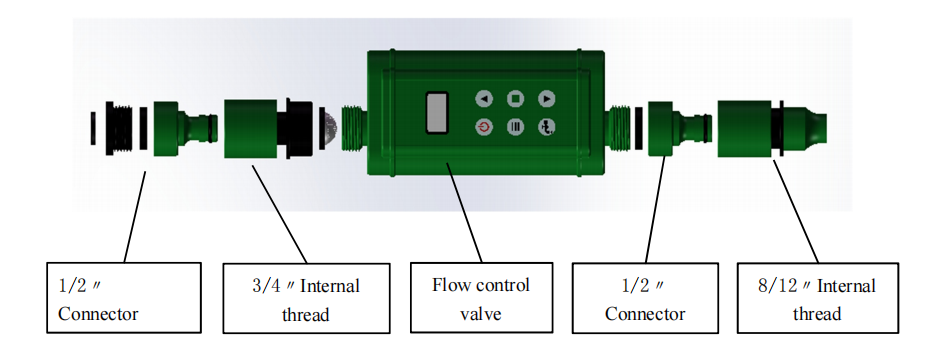

Installation
Application
Household Water Metering, Building Water Metering, Municipal Gardening, Agriculture Irrigation, Farm Irrigation, Automatic Car Wash, etc.
Certificate
