D116-RTD-PT1000 Intelligent System For Optimizing Water Usage

PRODUCTS > D116-RTD-PT1000 Intelligent System For Optimizing Water Usage
    • 1
    • 2
    • 3

D116-RTD-PT1000 Intelligent System For Optimizing Water Usage

Product Details
Brand: pFlow
Model : D116-RTD-PT1000
Place of Origin: Shenzhen, China
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Delivery Time: 2~4 days
Minimum Order Quantity: 1
Packaging Details: Carton Packing
Payment Terms: 100% T/T /Cash

Accuracy:±1.0% of measured value                                    Measuring Medium:Cleaning water,Sea water,Cooling water

Pipe size: Clamp-on:1"~48" (25mm ~1200mm)                 Flow range: ±(0.03~16)ft/s / ±(0.01~5) m/s

Pipe material: Carbon steel, Stainless steel, PVC                Output:Analog output:4~20mA,Max 750 Ω/Pulse output: 0~5000Hz,OCT

Communication interface:RS485 MODBUS                       Display:20x2 lattice alphanumeric, back lit LCD


PRODUCT INTRODUCTION



D116-RTD-PT1000 Ultrasonic Energy Meter

The D116-RTD-PT1000 is an ultrasonic energy meter designed for precise thermal energy measurement. It uses non-intrusive clamp-on technology for bi-directional flow measurement, suitable for water and liquids with small air bubbles or suspended solids. The device features automatic calibration data loading and transducer detection for quick setup. It supports pipe diameters from 25mm to 1200mm and fluid temperatures from 0°C to 80°C. With a Pt1000 temperature sensor, it offers high accuracy and long-term stability, making it ideal for industrial applications.


Optimizing Water Usage


lThe D116-RTD-PT1000 Intelligent System is a sophisticated solution designed to optimize water usage. It integrates advanced ultrasonic flow measurement technology with precise temperature sensing via RTD and PT1000 sensors.

lBy accurately monitoring flow rates and temperatures in real-time, the system provides detailed data on water consumption patterns. This enables businesses and industries to identify inefficiencies, implement targeted conservation measures, and significantly reduce water waste.

lIts applications span across various sectors, including HVAC systems, industrial processes, and municipal water management, offering a reliable and efficient way to enhance water resource management.


SPECIFICATIONS

Performance Index

Flow range

±(0.03~16)ft/s / ±(0.01~5.0) m/s

Accuracy

±1.0% of measured value

Repeatability

0.3%

Fluid

Water

Pipe Size

Clamp-on:1"~48" (25mm ~1200mm)

Pipe material

Carbon steel, Stainless steel, PVC

Function Specifications

Output

Analog output:4~20mA,Max load 750 Ω

Pluse output:0~5000Hz,OCT

Communication interface

RS485 MODBUS

Power Supply

10~36VDC/1A

Keypad

16(4X4)key with tactile action

Display screen

20x2 lattice alphanumeric, back lit LCD

Temperature

Transmitter:14℉~ 122℉(-10℃~50℃)

Transducer:32℉~176℉(0℃~80℃)

Humidity

Up to 99% RH, non-condensing

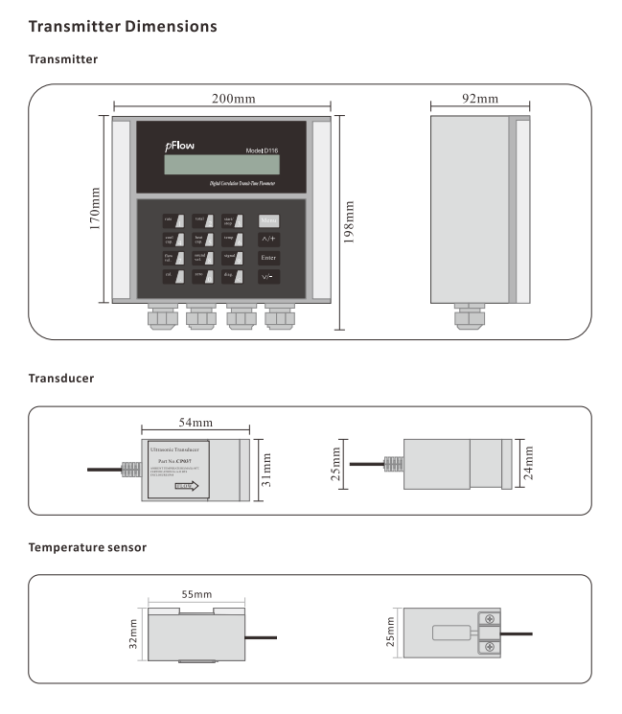

Physical Characteristics

Transmitter

PC/ABS,IP65

Transducer

Encapsulated design, IP68

Transducer cable

Standard cable length:30ft(9m)












APPLICATIONS

l Optimizing Water Usage

l Water and wastewater management

l HVAC (Heating, Ventilation, and Air Conditioning) systems

l Process industries (chemical, pharmaceutical, food and beverage)

l Energy management and environmental monitoring

l Agriculture and irrigation systems

l Research and development

l Facilities management

l Industrial maintenance and troubleshooting

l Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.



D116-RTD-PT1000 Application Case




CERTIFICATE




ABOUT SHIPPING


ABOUT US

1. Gentos Measurement & Control Co, Ltd. was established in 1993.

2. We focus on different types of ultrasonic flow meters almost 30 years.

3. We have our own factory to make exquisite appearance & optimal products.

4. We have 10 to 20 engineering employers to be working on research & development.

5. All our products are designed and manufactured by ourselves.

6. Each department works together to provide best service for our customers as well.



FAQ:

Q1: Do you have stock?

A2: Yes, we have safety inventory. We have a complete production line to meet bulk orders



Q2: How to ensure the quality of your products, will the finished product be inspected?

A2: Yes, every step of production and finished product must be strictly checked by QC before shipment.



Q3: How long is your delivery time?

A3: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).



Q4: Can you give us a discount?

A4: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.



Q5: Are you a FACTORY or TRADING COMPANY?

A5: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
