D116 Ultrasonic Flowmeter

Model : D116
Brand : pflow
Certification: ISO9001,ISO14001, CE

Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash

Introduction

The D116 Series Ultrasonic Flowmeter is a cutting-edge universal transit-time flowmeter, designed with FPGA chips and low-voltage broadband pulse transmission. Compared to traditional flowmeters or ultrasonic flowmeters, it stands out with high precision, reliability, capability, and cost-effectiveness. It features TVT technology, which means fewer hardware components and lower power consumption due to low-voltage broadband pulse transmission. The flowmeter has a clear and user-friendly menu, making it easy to operate. It provides daily, monthly, and yearly totalized flow, with parallel operation of positive, negative, and net flow totalizes. These totalizes have a scale factor (span) and a 7-digit display. The output of totalize pulse and frequency is transmitted via relay and open collector, ensuring efficient data transmission.


Specifications

Performance Index

Flow range

±0.03 ~ ±16 ft/s ( ±0.01 ~ ±5.0 m/s )

Accuracy

± 1.0 % of measured value , velocity＞0.5m/s

Pipe size

Clamp-on: 1" ~ 48" (25~ 1200mm )

Fluid

Water

Pipe Material

Carbon Steel, Stainless Steel, PVC

Functional Index

Communication Interface

RS485 MODBUS.

Output

Analog output : 4 ~ 20mA, (max load 750Ω);

Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable );

Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ).

Power supply

10 ~ 36VDC/1A

Keypad

16 ( 4×4 ) key with tactile action

Display screen

20×2 lattice alphanumeric, back lit LCD

Humidity

Up to 99% RH, non-condensing

Temperature

Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ )

Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ )

Physical Characteristics

Transmitter

PC/ABS, IP65

Transducer

Encapsulated design, IP68

transducer cable

Standard cable length: 30 ft (9m)

Weight



Transmitter: approximately 0.7kg;

Transducer: approximately 0.4kg

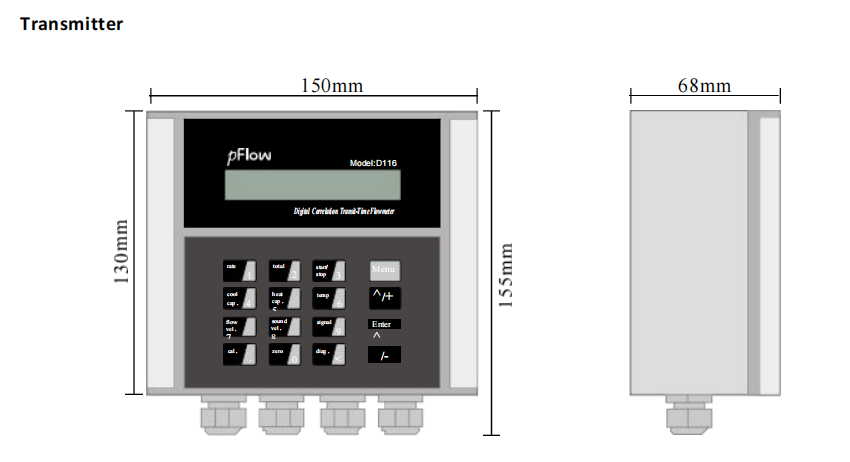

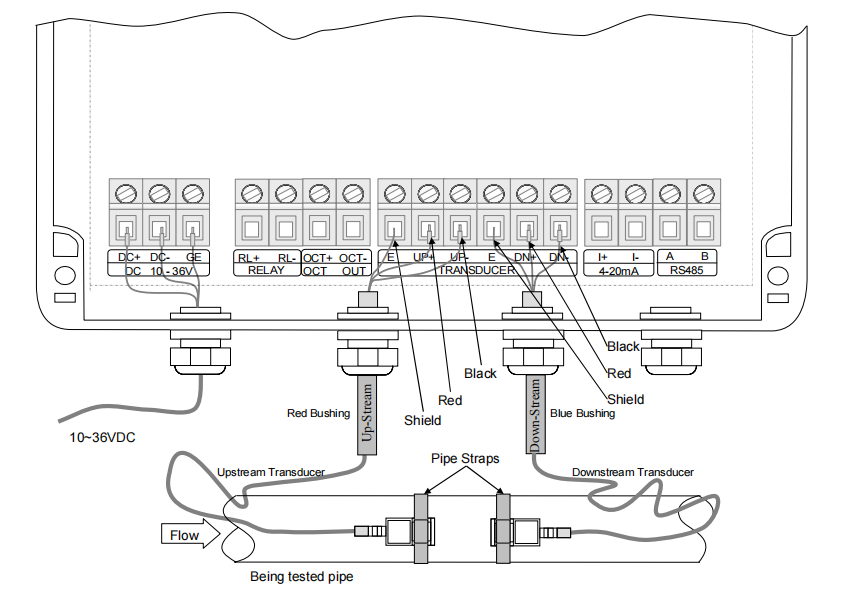

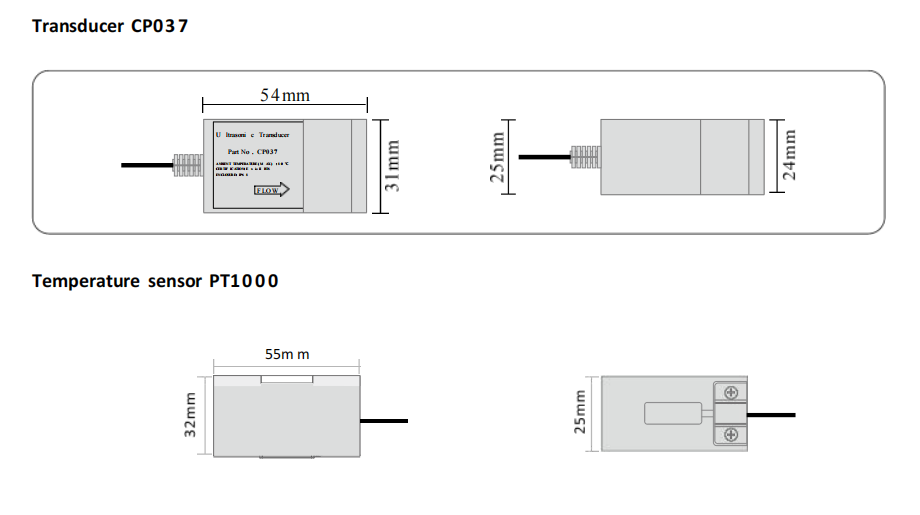

Wiring Diagram&Dimension

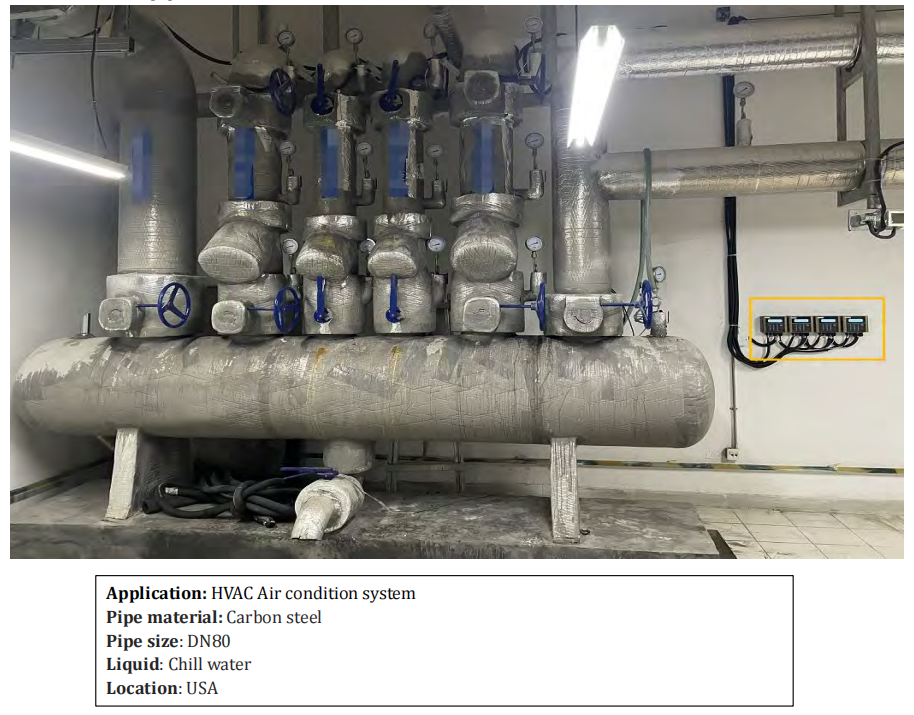

Application

Water treatment and distribution, pharmaceutical,inland aquaculture, heating and cooling circuits, swimming pools and irrigation systems, fire-fighting installations, automotive industry and energy plants,etc.


Certificate



Detectable Fluids

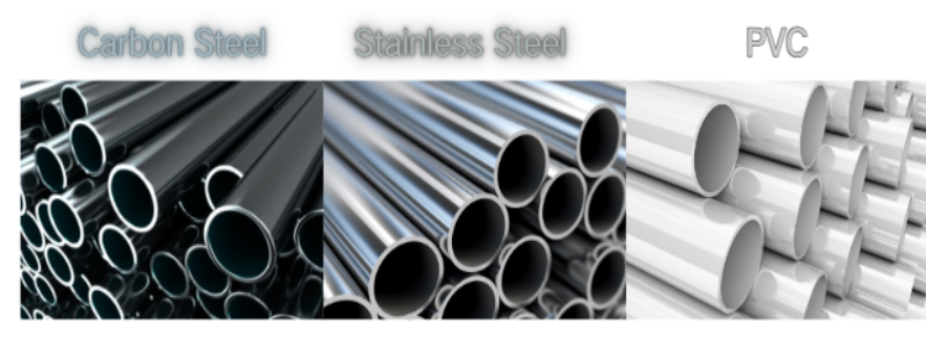

Compatible Pipe Materials
